Maxgroover's 6 String Modern Jazz - #025

Post by Phil » 24 Jul 2012, 19:29

Matt ordered this a few months back, he wanted to have a modern 6 string Jazz Basss with a spalted top, 24 frets, Nordstrand Big Splits and an OBP preamp in it. It sounded prettty cool for a project so I started working on the CAD drawings for this. It took a bit of time until I came up with what I wanted to have for a headstock and the body shape.


This is the configuration choices I sent Matt to decide what we were going to do with the headstock, I liked 5+1 clover tuners better, Matt prefered 4+2 better, he was right, the 5 clovers were making it pretty tight on the bass side, too far up the headstock and I didn't feel that we should have extended the headstock anyway, we could have gotten more balance problems by doing that


Once that was done I created the templates on the CNC router


We then went on Ebay and started shopping for a top, we settled on this block of spalt. I then went to my man Bill's place and resawed it into a bunch of tops


and then the woodwork started :)

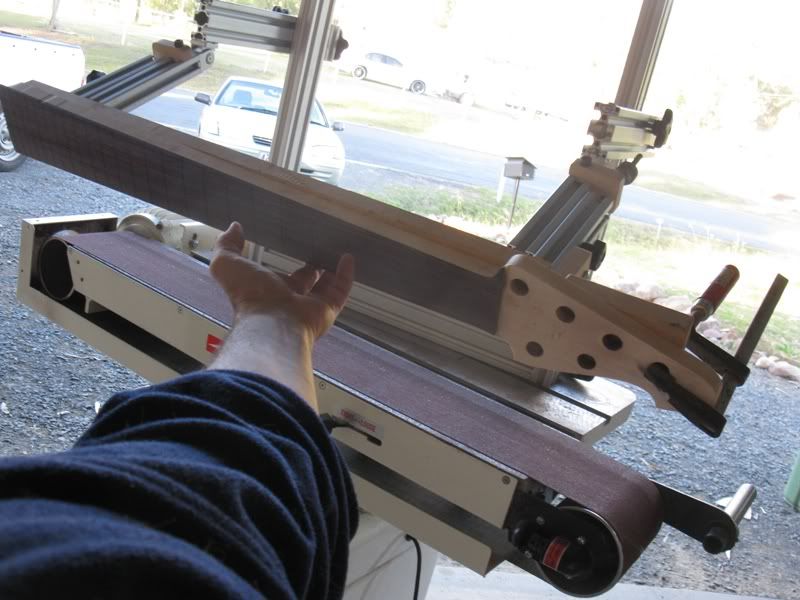

Sanding down the fingerboard radius


and rough cutting the back of the neck, once thats done the rest of the neck is shaped by hand. That's it for now, stay tuned for the next 6 weeks to see the rest :D


User avatar
PilbaraBass
Posts: 15086
Joined: 23 Oct 2008, 17:07
Location: Gladstone, QLD

Maxgroover's 6 String Modern Jazz - #025

Post by PilbaraBass » 24 Jul 2012, 20:39

That's GREAT! I'm jealous, Matt.
I think I'd like one, too, please :D
'98 Carvin AC40, '07 Squier JDAV, '91 P-bass, '96 Ibanez ATK300F, '15 Ibanez SR605
Kanye West wrote:My greatest pain in life is that I will never be able to see myself perform live.

User avatar
Rude_Mechanical
Posts: 6013
Joined: 25 Oct 2008, 21:04
Location: Brisbane, Australia
Contact:

Re: Maxgroover's 6 String Modern Jazz - #025

Post by Rude_Mechanical » 24 Jul 2012, 20:54

Phil wrote:Image
"Surf City, here we come!"

The 4+2 headstock definitely makes more sense, I must say.
"Turn everything to 11, dump instruments in front of the amp and manipulate pedals for 5 minutes" - me.

basshack
Posts: 4573
Joined: 06 Feb 2010, 10:14
Location: Melbourne Victoria

Re: Maxgroover's 6 String Modern Jazz - #025

Post by basshack » 24 Jul 2012, 21:08

Phil wrote:That's it for now, stay tuned for the next 6 weeks to see the rest :D
That's just unfair!
><((((º> ·.¸¸.·´¯`·.¸.·´¯`·... ><((((º>
.·´¯`·.¸.·´¯`·... >((((º>

User avatar
Phil
Site Admin
Posts: 2709
Joined: 22 Oct 2008, 23:35
Location: Cedar Vale, QLD (Southside Brisbane)
Contact:

Re: Maxgroover's 6 String Modern Jazz - #025

Post by Phil » 24 Jul 2012, 21:13

Yeah it does make more sense and is also pretty nice too if I can say so :D forgot to post pics of the top earlier



User avatar
PilbaraBass
Posts: 15086
Joined: 23 Oct 2008, 17:07
Location: Gladstone, QLD

Maxgroover's 6 String Modern Jazz - #025

Post by PilbaraBass » 24 Jul 2012, 21:22

Oh that's NICE!
'98 Carvin AC40, '07 Squier JDAV, '91 P-bass, '96 Ibanez ATK300F, '15 Ibanez SR605
Kanye West wrote:My greatest pain in life is that I will never be able to see myself perform live.

User avatar
mkat
Posts: 2830
Joined: 23 Oct 2008, 16:40
Location: /usr/bin
Contact:

Re: Maxgroover's 6 String Modern Jazz - #025

Post by mkat » 24 Jul 2012, 22:08

Looking good Phil. What's the string spacing on this and what bridge will be installed on it?
Michael
http://mklutherie.com

int main(void) {return 0;} /* no bugs, lean, portable & scalable... */

User avatar
maxgroover
Posts: 3506
Joined: 19 May 2009, 11:28
Location: Sydney

Maxgroover's 6 String Modern Jazz - #025

Post by maxgroover » 24 Jul 2012, 23:16

I gotta say I'm pretty excited about this one! Phil's been great all the way along, being especially patient as we selected the top and as I changed my mind on various things.

The string spacing will be 18mm. I'm not a big fan of narrow string spacing, particularly for basses I occasionally slap. The 18mm spacing should be a good compromise for the extra string and neck width.
Ozbass moderator

The Moods Band

Mailloux, Fender, Lakland, Univox basses
Genz Benz, Tech 21, BBE, Crown, Zoom amps and preamps
Bergantino & Genz Benz Cabs

bassmaniac69
Posts: 1239
Joined: 16 May 2010, 20:23
Location: Brisbane

Re: Maxgroover's 6 String Modern Jazz - #025

Post by bassmaniac69 » 24 Jul 2012, 23:30

Wowsers!!!!

User avatar
Petebass
Posts: 8546
Joined: 31 Oct 2008, 07:07
Location: Hervey Bay, QLD

Re: Maxgroover's 6 String Modern Jazz - #025

Post by Petebass » 24 Jul 2012, 23:57

Oooooh, spalty goodness!!!!
* 2 Stingray 5's (one heavily modded), Ibanez SR805, Ashbory, + more...
* Carvin B1500, Epifani PS1000, Ashdown Superfly amps.
* Lots of DIY neo/lightweight cabs including one made from composites http://www.ozbassforum.com/viewtopic.php?f=5&t=2546

User avatar
mkat
Posts: 2830
Joined: 23 Oct 2008, 16:40
Location: /usr/bin
Contact:

Re: Maxgroover's 6 String Modern Jazz - #025

Post by mkat » 25 Jul 2012, 01:00

maxgroover wrote:The string spacing will be 18mm. I'm not a big fan of narrow string spacing, particularly for basses I occasionally slap. The 18mm spacing should be a good compromise for the extra string and neck width.
Nice one, I really like the wider spacing on a 6. Have you decided on a bridge yet?
Michael
http://mklutherie.com

int main(void) {return 0;} /* no bugs, lean, portable & scalable... */

User avatar
Phil
Site Admin
Posts: 2709
Joined: 22 Oct 2008, 23:35
Location: Cedar Vale, QLD (Southside Brisbane)
Contact:

Re: Maxgroover's 6 String Modern Jazz - #025

Post by Phil » 25 Jul 2012, 04:43

Hipshot A style, all hardware will be black

User avatar
Snoopygore71
Posts: 996
Joined: 25 Nov 2010, 13:42
Location: Melbourne

Re: Maxgroover's 6 String Modern Jazz - #025

Post by Snoopygore71 » 25 Jul 2012, 06:12

I love the top on Terry's, looking forward to the end result!!
Nordstrand, Sadowsky, Musicman, Ibanez, Aguilar, Bergantino, Mono, Source Audio and various and sundry. And all the stuff I sold I miss - Dingwall, Fender, R Bass, Bossa, SWR, Lecompte, LEJ, TecAmp

User avatar
jamiesdad
Posts: 3972
Joined: 11 Jan 2009, 14:24
Location: Sydney's Leafy North Shore

Maxgroover's 6 String Modern Jazz - #025

Post by jamiesdad » 25 Jul 2012, 07:15

Very nice matt. Love the idea of buying a huge chunk of timber on ebay
Friendly Forum Mod

User avatar
Aussie Mark
Posts: 16073
Joined: 28 Oct 2008, 21:06
Location: Sydney
Contact:

Re: Maxgroover's 6 String Modern Jazz - #025

Post by Aussie Mark » 25 Jul 2012, 09:01

jamiesdad wrote:Very nice matt. Love the idea of buying a huge chunk of timber on ebay
+1

Rolling Stoned | The Volts | Doors Alive | Bonza | The Vinyl Beats

Basses: Nash, Fender, Duesenberg, Greco, Ibanez
Rig: Fender Bassman 500 and Neo 410

Endorsing artist: Fender; Cave Passive Pedals
